Caneda

Circuits and Networks Electronic Design Automation

Download this project as a tar.gz file Download the Windows Installer

Caneda is an open source EDA software suite focused on ease of use and portability.

Its main goal is to handle the complete design process: schematic capture, simulation and circuit layout or PCB.

Caneda aims to support all kinds of circuit simulation types, e.g. DC, AC, S-parameter and harmonic balance analysis.

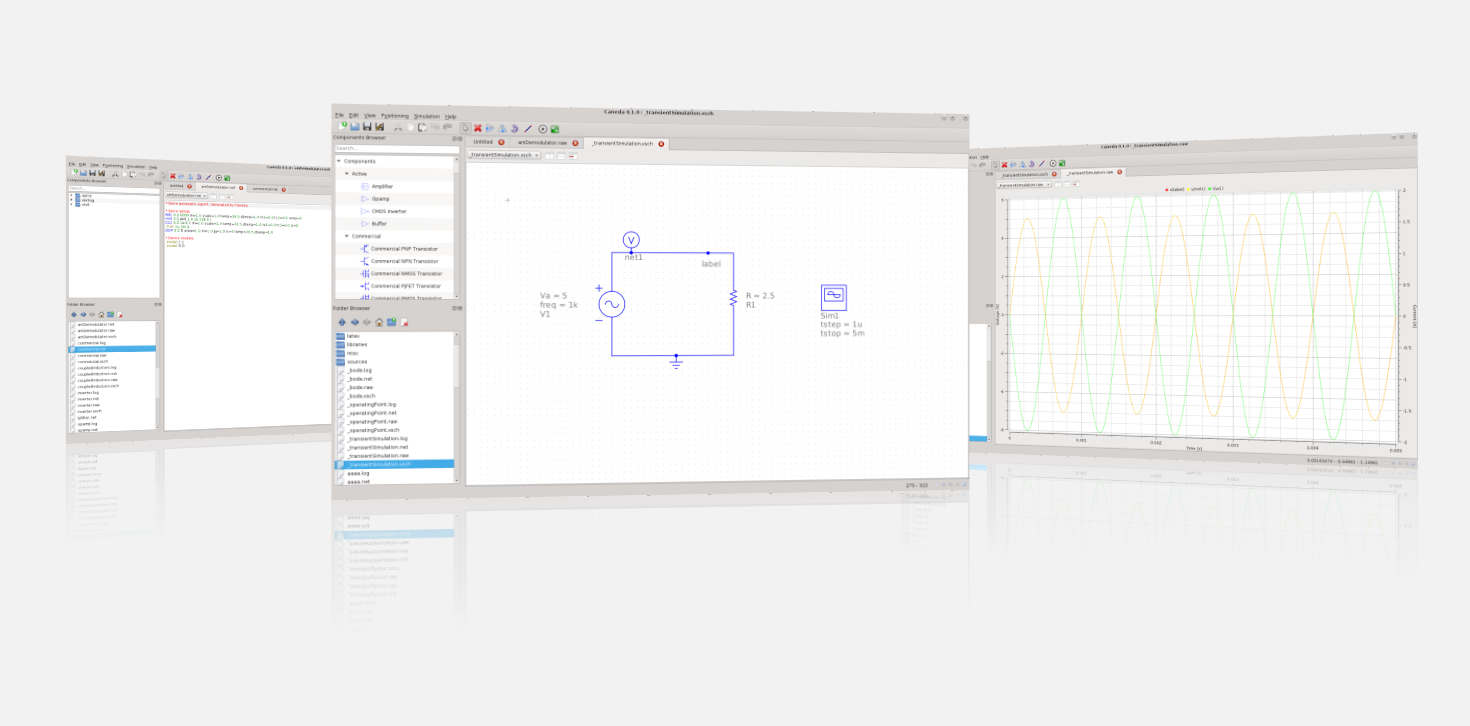

Caneda sample screenshots
